Pipe suspension grabs "SL" or "SM"
2 chained grabs
#1
#2
#3
#4

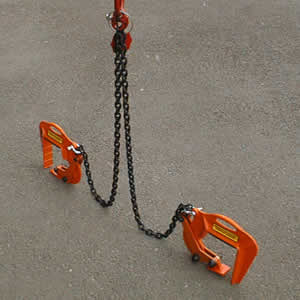

GD600SL or GD600SM
Réf. : 9902
| WLL(Kg) | Weight(Kg) | Chain length(m) | Pipe wall thickness (mm) |
Options | Overall Dimensions(mm) | Outer concrete product diameter (mm) |
|---|---|---|---|---|---|---|
| 600 | 8 | 1.00 | 45 to 95 | Exists for X=55 to X=105 | 330 x 220 x 50 | Ø400 - Ø1000 |
« Retour à l'index des produits.
GD1300SL or GD1300SM
Réf. : 9852
| WLL(Kg) | Weight(Kg) | Chain length(m) | Pipe wall thickness (mm) |
Options | Overall Dimensions(mm) | Outer concrete product diameter (mm) |
|---|---|---|---|---|---|---|
| 1300 | 30 | 1.20 | 65 to 135 | 500 x 400 x 60 | Ø800 - Ø1200 800 x 800 to 1200 x 1200 |
« Retour à l'index des produits.
GD2000SL or GD2000SM
Réf. : 9972
| WLL(Kg) | Weight(Kg) | Chain length(m) | Pipe wall thickness (mm) |
Options | Overall Dimensions(mm) | Outer concrete product diameter (mm) |
|---|---|---|---|---|---|---|
| 2000 | 44 | 1.50 | 95 to 165 | Exists for X=80 to X=180 Exists for X=155 to X=225 |
540 x 420 x 60 | Ø900 - Ø1500 900 x 900 to 1500 x 1500 |
« Retour à l'index des produits.
GD2400SL or GD2400SM
Réf. : 9862
| WLL(Kg) | Weight(Kg) | Chain length(m) | Pipe wall thickness (mm) |
Options | Overall Dimensions(mm) | Outer concrete product diameter (mm) |
|---|---|---|---|---|---|---|
| 2400 | 46 | 1.50 | 85 to 155 | 550 x 430 x 60 | Ø900 - Ø1500 900 x 900 to 1500 x 1500 |
« Retour à l'index des produits.
The
specifications of the products and accessories are given subject
to alterations.
The reproduction of this catalogue is strictly forbidden without
the agreement of the manufacturer. This catalogue and all our
equipment are protected by the INPI.
